PRODUCT / Central Vacuum Power Units / MUA63

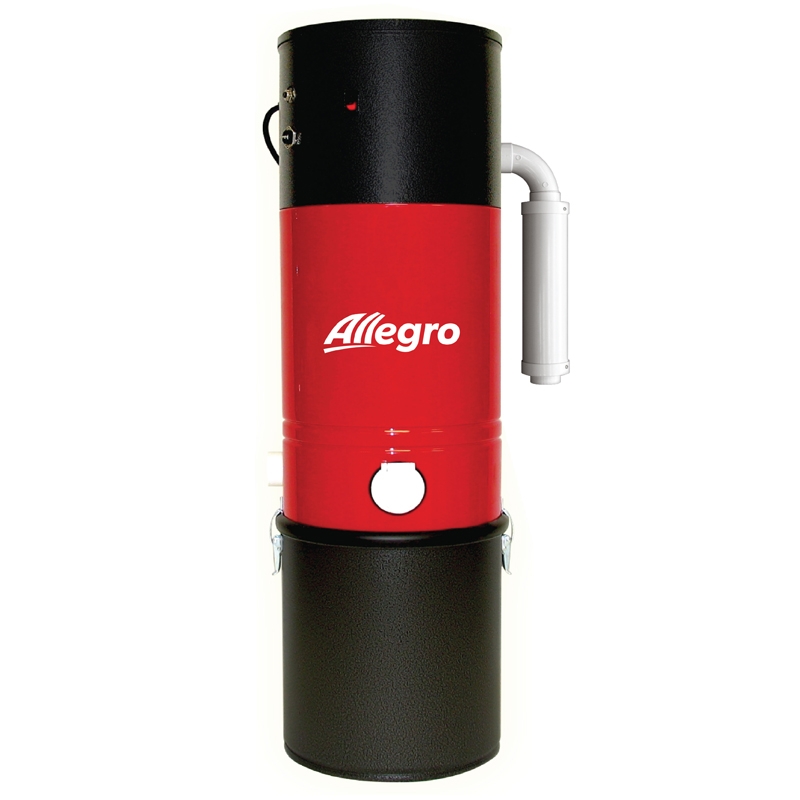

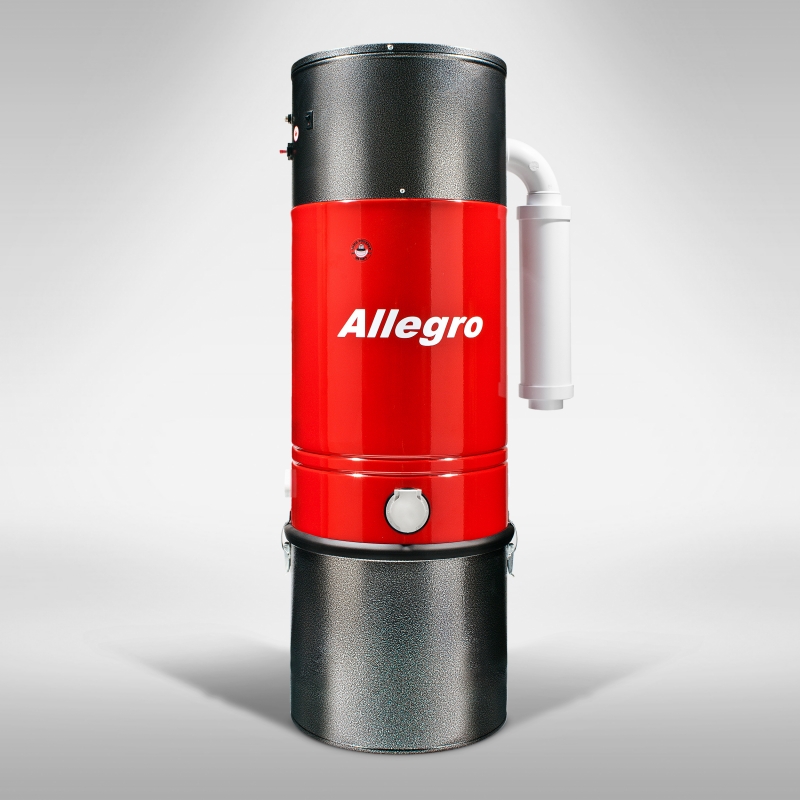

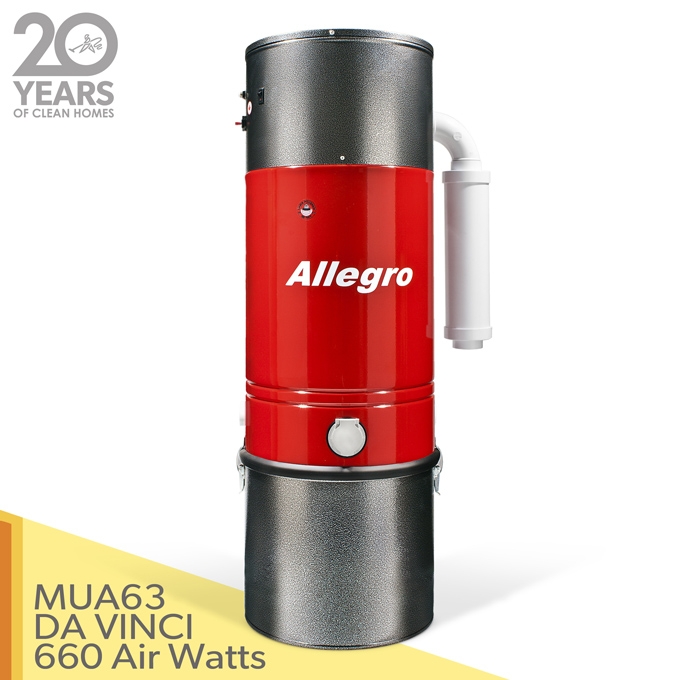

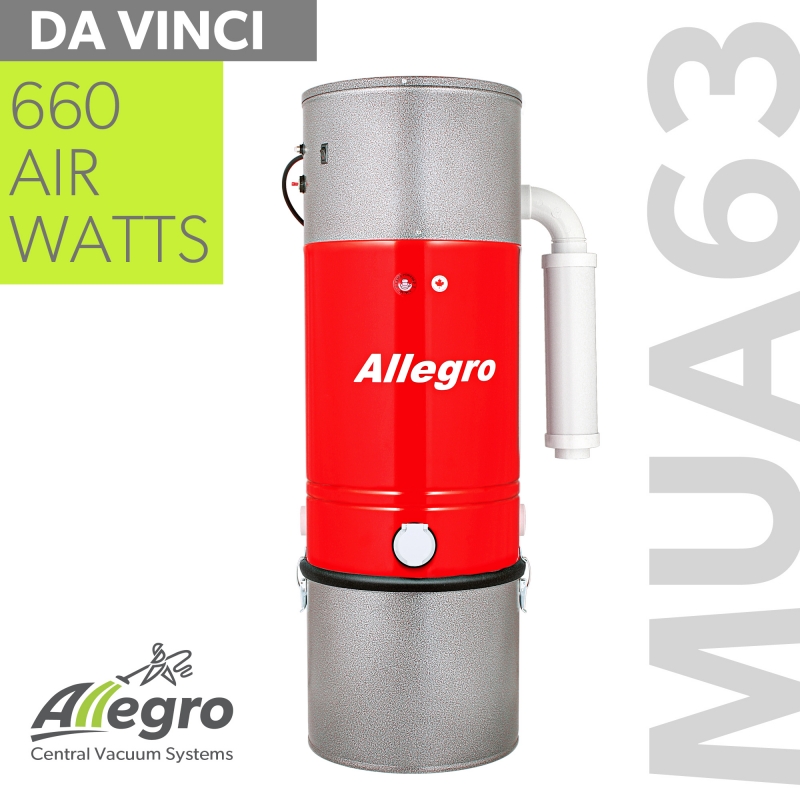

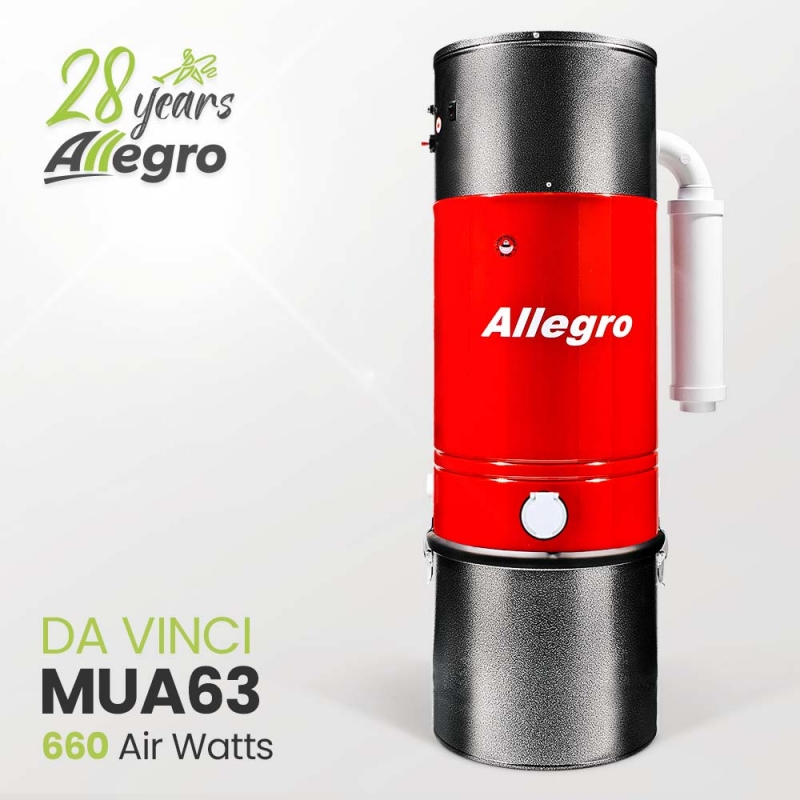

MUA63

DA VINCI Quiet Allegro Central Vacuum

Allegro MUA63 Acoustic DaVinci is a heavy-duty unit that is ideal for primarily commercial application and for homes up to 10,000 sq. ft. (1000m2)



UPC: 609207104070









Image title





Allegro's Eco-Line Green Powered models are designed for high efficiency performance to save on electricity and are rated to have twice the life of regular blower motors. It saves money and the environment

- Now that is eco-friendly!

Motor:



Lamb powered, 2-Stage AMETEK® 6.6" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity.

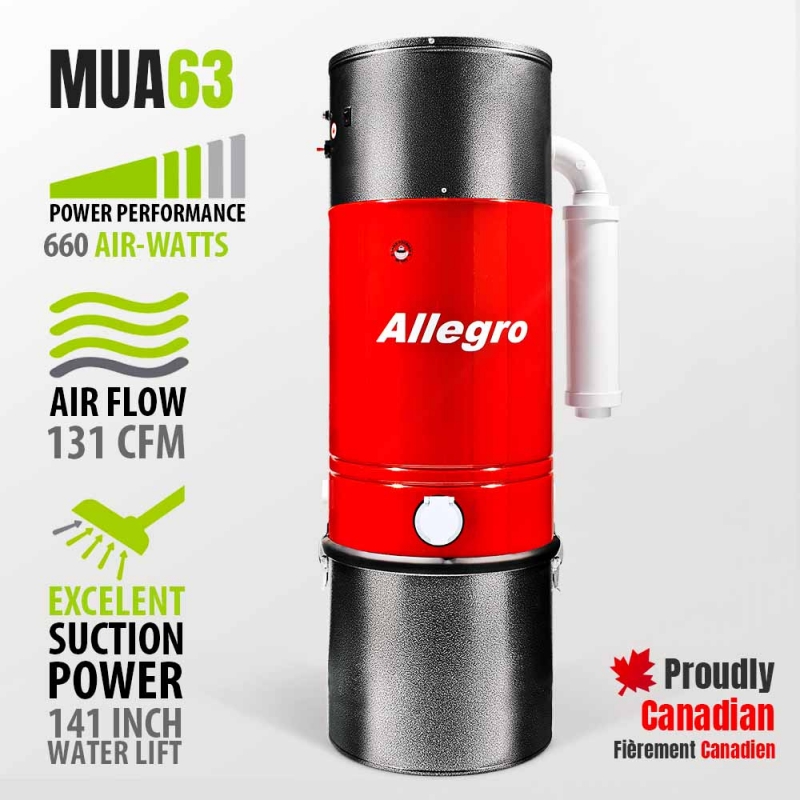

Air Watts:  660 Air Watts of efficient cleaning power
Air Flow:  Air-flow of 131.1 cubic foot per minute
Suction Power:  Excellent Suction power of 140.8 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 14.0 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1680 watts of powerful performance making cleaning that much easier!

 Image title

Construction: 14" width  x 43" height with a 8 gallon dirt pail. Made of all steel construction. 41lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration SystemsThis permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.


Allegro MUA63 Central Vacuum Maximum Suction Power

Image title Image title Image title



Acoustic Unit Technical Specifications

Frequently Asked Questions

 Image title

Qty.:
500.00 USD
Add to cart

Technical characteristics

Main parametersModel - MUA63
Cleaning Area10,000 sq. foot
Suction Power131.5 inch water lift
Air-Flow138.8 CFM
Air-Watts660
Motor2 Stage, 6.6", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Max. Amps14.0
Input Power1680 watt
Shipping Weightyes
Hertz60 Hz
Dust IntakeDual

Replacement parts for - MUA63
