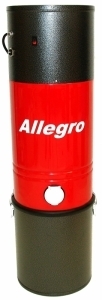

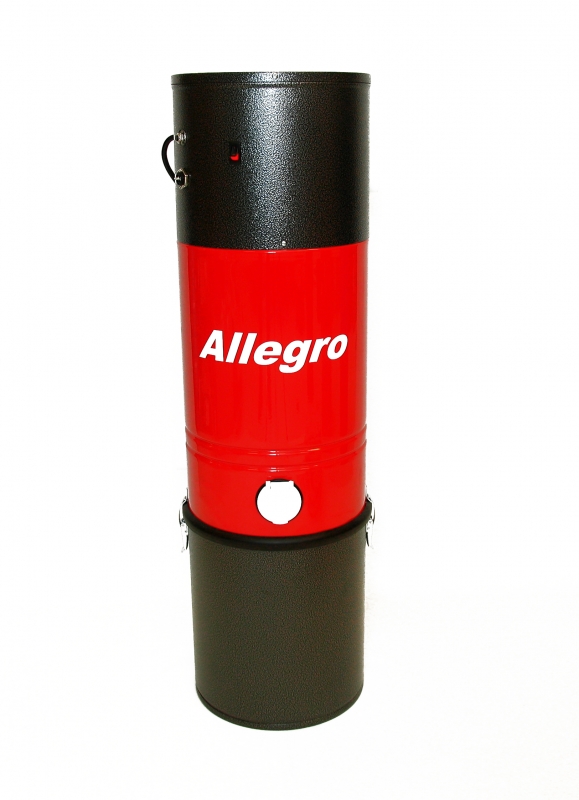

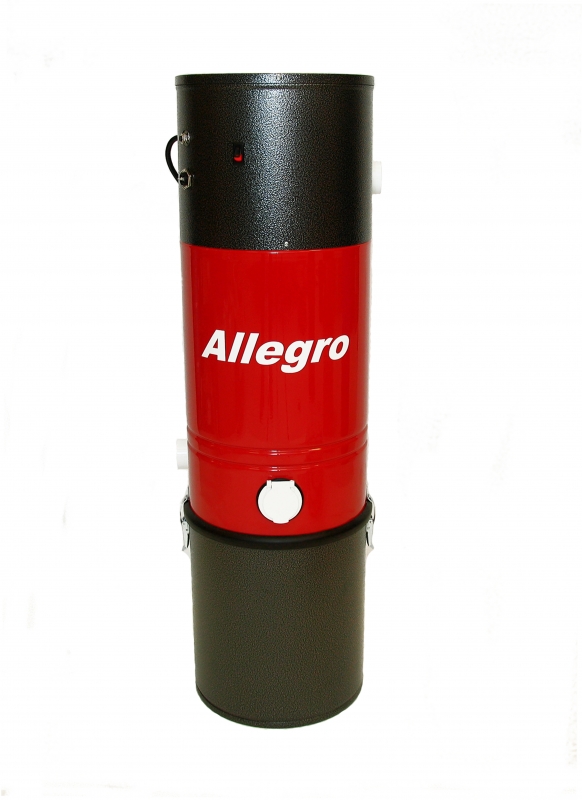

MU4200 - Allegro Aspirateur Central Vacuum Classic Power Unit - Model MU4200

Excellent end of hose performance and ideal for homes up to 3,000 sq. ft. (300 m²).

Motor:  Ametek Lamb, 2-Stage, 5.7", single speed bypass with double ball bearings, 10 mm shaft and bearing system for extra structural rigidity.

Air-Watts:   525

Air-Flow:   121 CFM

Suction Power:   125  Water Lift

Max. Amps:   13.8

Volts:   ~ 110 - 120 v

Power:    1675 Watts

Construction:

All metal construction with heavy duty 22 gauge steel.  20 liter  (5 US gal.) metal dirt pail.

Dimensions:

12 inch diameter x 40 inch height.

Filtration:

Self-cleaning no maintenance patented Fibro-Tex Filtration Systems . This permanent filtration system never needs to be replaced, or washed, and there are no expensive filter replacement costs.

Finish:

Primer and Environmentally friendly Electrostatic Powder coat. Guaranteed for life against corrosion perforation.

Exhaust:

The unit is fully ventable to the outside. Up to 12 Ft exhaust line with standard 2" PVC Central Vacuum Pipe.

Click here for Technical Data / Bulletin

Visit our Frequently Asked Question section for more information Q & A.

Made in Canada      Fabriqué au Canada
