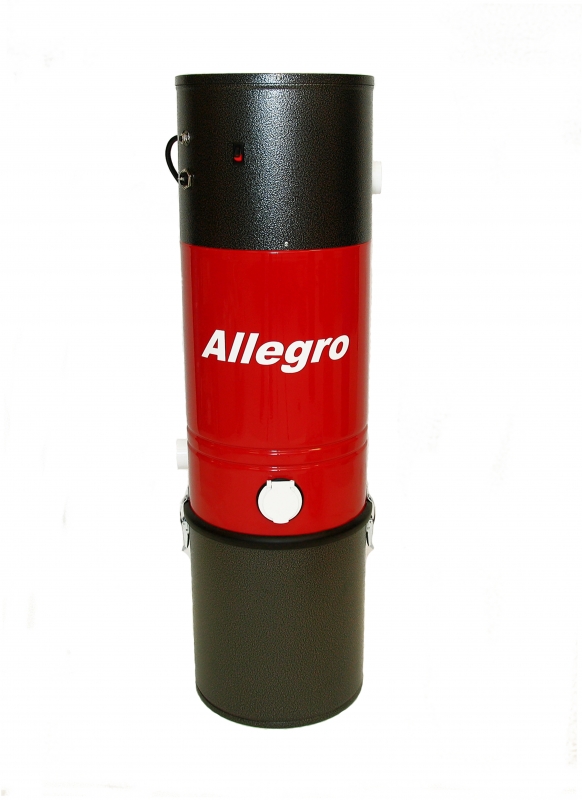

MUA49 - Allegro Central Vacuum Acoustic Champion Power Unit

Over 15% more Air Power than MUA46.   Designed for homes up to 6,000 sq. ft. (600 m²).

Motor:  3-Stage pump system, 5.7" single speed all metal construction tangential bypass with double ball bearings, 10 mm shaft and bearing system for extra structural rigidity.

Air-Watts:   575

Air-Flow:   124.1 CFM

Suction Power:  141.8  Water Lift (H₂0)

Max. Amps:  15.7

Volts:   ~ 110 - 120 v

Power:    1855 Watts

Construction:

20 litre (5 US gal.) dirt pail - 11.25" dia. X 39.5" height. All steel construction (34 lb.).

Filtration:

Self-cleaning no maintenance patented Micro-Fibre Filtration Systems. This permanent filtration system never needs to be replaced, or washed, and there are no expensive filter replacement costs. Simply empty the dirt pail 2 or 3 times a year.

Finish:

Primer and Environmentally friendly Electrostatic Powder coat. Guaranteed for life against corrosion perforation.

Exhaust:

The unit is fully ventable to the outside. Up to 12 Ft exhaust line with standard 2" PVC Central Vacuum Pipe.

Click here for Technical Bulletin

Visit our Frequently Asked Question section for more information Q & A.

Made in Canada      Fabriqué au Canada
