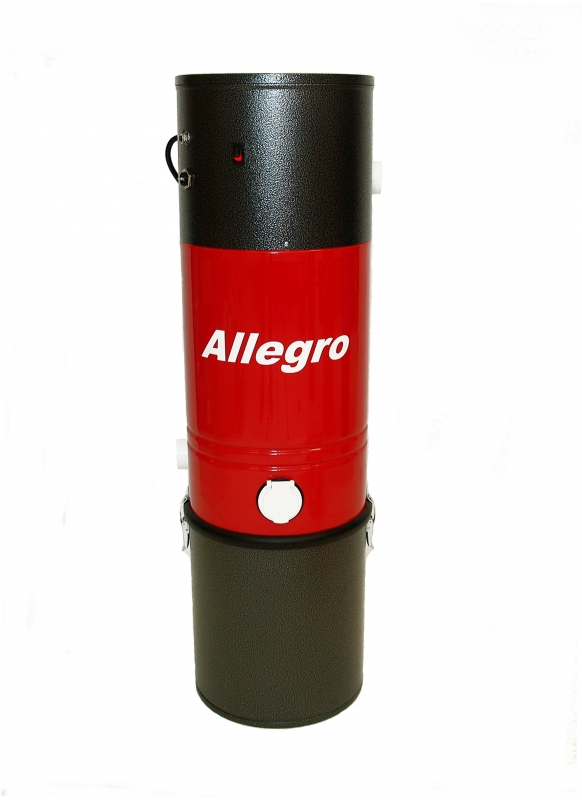

MUA46 - Allegro Central Vacuum Acoustic Classic Power Unit

Excellent end of hose performance and ideal for homes up to 3,000 sq. ft. (300 m2).

Motor:  Amatek Lamb, 2-Stage, 5.7" , single speed bypass with double ball bearings, 10 mm shaft and bearing system for extra structural rigidity.

Air-Watts:   525

Air-Flow:   121.0 CFM

Suction Power:    125  Water Lift (H₂0)

Max. Amps:   13.8

Volts:   ~ 110 - 120 v

Power:    1675 Watts

Construction:

20 litre (5 US gal.) dirt pail - 11.25" diameter X 38.5 " height. All steel construction (34 lbs.)

Filtration:

Self-cleaning no maintenance patented Fibro-Tex Filtration Systems. This permanent filtration system never needs to be replaced, or washed, and there are no expensive filter replacement costs.

Finish:

Primer and Environmentally friendly Electrostatic Powder coat. Guaranteed for life against corrosion perforation.

Exhaust:

The unit is fully ventable to the outside. Up to 12 foot exhaust line with standard 2" PVC Central Vacuum Pipe.

Click here for Technical Bulletin

Visit our Frequently Asked Question section for more information Q & A.

Made in Canada      Fabriqué au Canada
