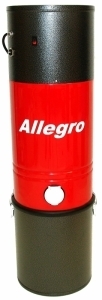

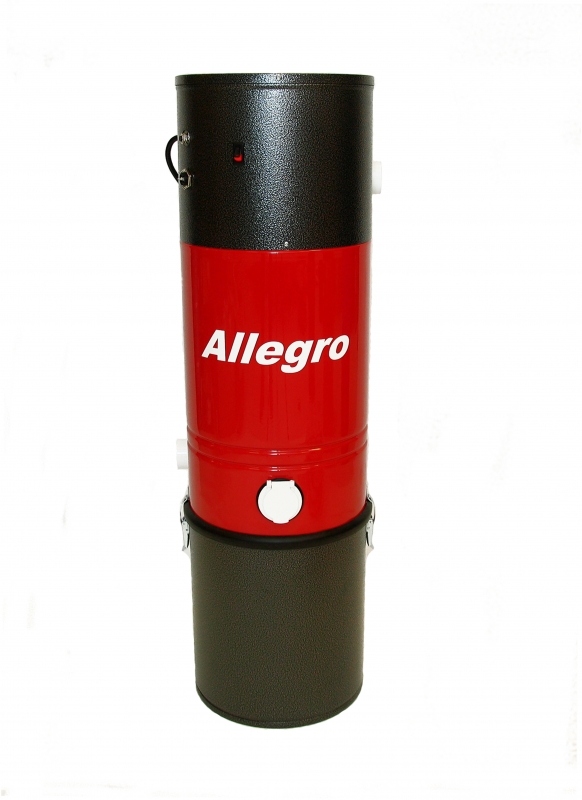

MUA65 - Allegro Central Vacuum Acoustic Summit Power Unit

A super-powerful unit primarily for industrial and commercial application, or very large homes up to 12,000 sq. ft. (1200 m2).

Motor:  3-Stage, 7.2" single speed all metal construction bypass with double ball bearings, 10 mm shaft and bearing system for extra structural rigidity.
Most powerful blower motor in the market for Central Vacuum application.

Air-Watts:   610

Air-Flow:   120.2 CFM

Suction Power:    141.4  Water Lift (H₂0)
Max. Amps: 15.8

Volts:   ~ 110 - 120v

Power:   1800 Watts

Construction:

32 litre (8 US gal.) dirt pail - 14" diameter X 43 " height.    All steel 22 gauge construction (40 lb).

Filtration:

Self-cleaning no maintenance patented Micro-Fibre Filtration Systems. This permanent filtration system never needs to be replaced, or washed, and there are no expensive filter replacement costs.

Finish:

Primer and Environmentally friendly Electrostatic Powder coat. Guaranteed for life against corrosion perforation.

Exhaust:

The unit is fully ventable to the outside. Up to 12 Ft exhaust line with standard 2" PVC Central Vacuum Pipe.

Click here for Technical Bulletin

Visit our Frequently Asked Question section for more information Q & A.

Made in Canada      Fabriqué au Canada
