MA6765A - Central Vacuum Motor - Beam - 116765 Ametek Lamb

DESCRIPTION

- Three Stage
- ~120 volts
- 5.7" / 145 mm diameter
- Double Ball bearings
- Single speed
- Tangeltial bypass discharge
- Aluminimum fan end brackets

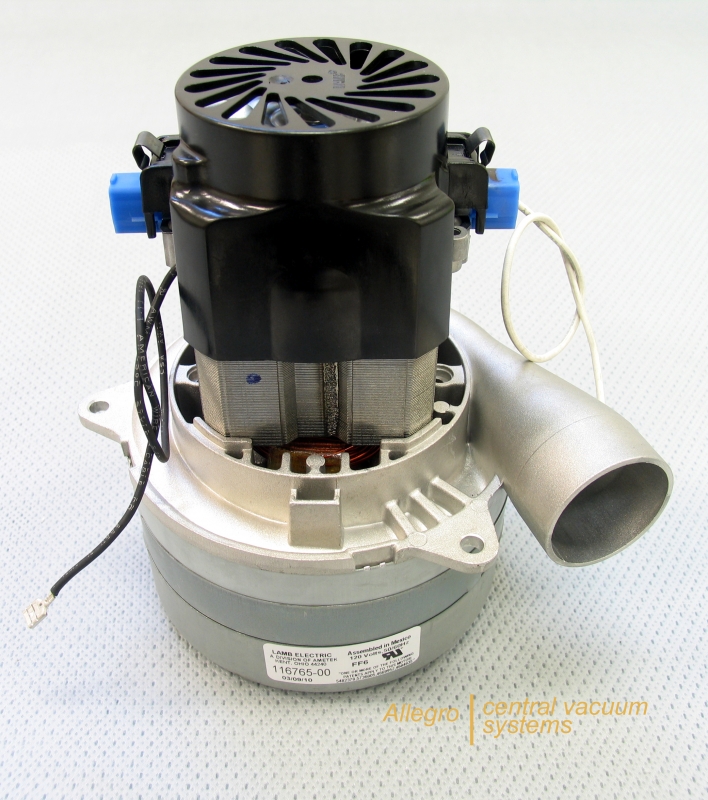

Brand new 3-stage, 5.7 inch, Tangential Discharge

Ametek Lamb Electric 116765-00 motor.

This 116765 vacuum motor may say 6765. Replaces 116565, 6565 but is 1/4" TALLER.

Height 8", Bolt Height 3", Waterlift 136", CFM 95.3, AirWatts 465, Amps 13.13

Click here for Technical Bulletin
