User's Manuals / TurboCat Zoom Aspiración Central Vacuum Powerhead Onyx

TURBOCAT ZOOM INSTRUCTION MANUAL ZAS032-BK

Routine Care & Maintenance



Image title



This Turbine Powerhead has been engineered for higher performance, quieter operation and superior cleaning ability.  It has been carefully designed and manufactured for long life, reliable performance and convenient cleaning. It requires no electricity because it runs off the airflow of your central vacuum system.  The Turbine Powerhead moves easily and does not require downward pressure for thorough cleaning. As with any tool with moving parts, caution must be exercised while using this Turbine Powerhead.

Please read and save these Operating Instructions.



SAFETY PRECAUTIONS

1.
Keep hair, hands and feet away from rotating brush while the Turbine Powerhead is running.
2.
Remember that Turbine Powerheads operate whenever they are connected to a running vacuum. If children are present, make sure to turn vacuum system off when leaving Powerhead unit unattended.
3.
Do not attempt to service or unclog Turbine Powerhead while unit is running.



Instruction for this Turbine Powerhead



[A] ATTACHING THE TURBINE POWERHEAD

To attach your metal wands, ZAS041 (Only use non-buttonlock lower wand!) simply insert wand into Powerhead neck until it fits snugly. The built-in, locking mechanism will prevent the wand from coming loose. To detach wand, depress wand release tab on the back of the neck with foot or hand and twist wand free. (See Figure. 1 & 2)



Central Vacuum ONYX Turbocat Zoom Instructions



HINT: Do not insert button-lock lower wand with the Turbine Powerhead neck. It will get jammed and you will not be able to take it apart.

The wand can be locked in an upright position by pushing it forward until the lock is engaged.  This lock position is convenient for storage and lifting the Powerhead. To release wand from the vertical locked position, gently place foot on Powerhead, grasp wand and pull back. (See Figure. 3)



Image title



[B] OPERATING PROCEDURES

Your Turbine Powerhead runs off the airflow of your vacuum system. It has no ON/OFF switch. Whenever it is attached to an operating vacuum system, it will be running.  No adjustments to the powerhead are necessary for different types of carpeting.

To ensure maximum efficiency of the Turbine Powerhead, make sure that any filters, bags and cleaning hoses in your vacuum system are clean and free of blockage.

Avoid picking up water or spilled liquid with your Turbine Powerhead.

The vacuum system is designed for dry pick up only!



[C] CLEANING ROLLER BRUSH

Turn off vacuum system and disconnect Powerhead.  Threads, string, carpet fiber, fuzz and similar items may become wound around the beater brush.  These should be removed by unwinding them by hand or carefully cutting with scissors.  Keeping the beater brush clean will maintain efficiency. (See Figure. 4)

Image title

[D] REMOVING CLOGS

Follow these steps if the turbine becomes obstructed:

1.
Turn off vacuum system and disconnect the Powerhead

2.

Remove the clear belt cover by turning the Powerhead over and rotating the two latches until they align with the openings in the belt cover.  Remove the belt cover.
3.
Remove debris from the intake or turbine. Rotate brush to ensure the system is clear.  Ensure the orange seal on the belt cover and mating surfaces are clean before reinstalling the belt cover.
4.
To reinstall the belt cover, simply insert the front of the belt cover under the baseplate edge and lower into its original position.
5.
Secure the belt cover in place by turning the two latches to the lock position.
Image title



[E] REPLACING TURBOCAT ZOOM DRIVE BELT

It is recommended that the drive belt be replaced by a Qualified Service Technician.

1.
Turn off vacuum system and disconnect powerhead
2.
Remove belt cover as described section [D]
3.
Remove the 3 screws securing the baseplate.
4.
Remove the baseplate. (See Figure. 6)
5.
IMPORTANT: Please note correct brush and belt orientation. They must be reinstalled correctly for proper function.
6.
Lift the brush, belt and support assembly out of the housing. (See Figure. 7)
7.
Remove the old belt.
8.
Place the new belt ZAS032-BT over one end, onto the brush roller, between the two centre flanges.
9.
Loop belt around shaft. Twist belt as shown.
10.
Slide the brush / belt assembly back into the housing recesses so the support seat properly into the housing.  The assembly is designed to fit only one way into housing.

IMPORTANT: The brush will rotate in the wrong direction if the belt is twisted incorrectly!
11.  Replace belt cover.

Image title

Image title





Troubleshooting the Turbine Powerhead

CAUTION: Moving parts - disconnect from vacuum systems before servicing unit.

Use the chart below to troubleshoot common problems you may experience with your turbine powerhead.



Turbine

Runs

Slow

Brush

Bounces

in Use

Brush

Hard to

Push

 Check for clog at air intake
 Clean central vacuum power unit filter

 Check for clog in hose

 Check for clog in tube line


 Ensure belt orientation is correct


 Change direction you are vacuuming




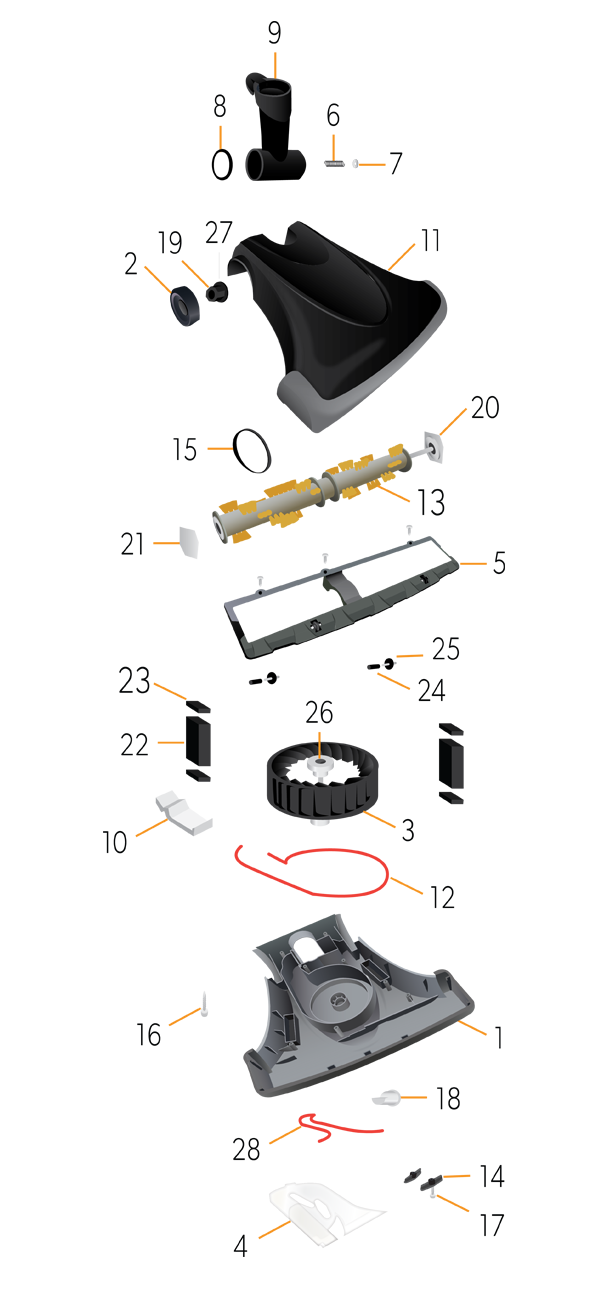

Replacement Parts


Image title



 ItemPart Description Part No.
1Lower housing 8412*
2Wheel Assembly (2) 8425*
3Turbine Assembly 8558
4Belt Cover 8413
5Base Plate 8414*
6Compression Spring 8557
Washer, Spring 5974
Washer, Neck 5971
Neck Assembly 8423
10 Spring, Neck Lock 7218
11 Top Housing 8411*
12 Seal, Small 7223
13 Roller Brush Assembly 8457
14 T-Latch (2) 7226
15 Belt 8439
16 Screw, Housing (12) 7228
17 Screw, T-Latch (2) 7230
18 Bearing, Idler Assembly 8556
19 Bushing, Wheel (2) 7231
20 Shaft Support Assembly, Left 8428
21 Shaft Support, Right with Washer 8561
22 Ballast (2) 7238
23 Foam Pad (4) 7239
24 Shaft, Roller Wheel (2) 8416
25 Roller Wheel (2) 8417
26 Bearing Isolator (2) 8427
27 Retaining Ring (2) 8458
28 Seal, Belt Guard, Large 7224
  * Please specify color when ordering
