PRODUCT / Central Vacuum Power Units / MU4500

MU4500

CHAMPION Allegro Central Vacuum

Allegro MU4500 Champion Central Vacuum has over 15% more air power than the MU4200 and is designed and rated for homes up to 6,000 sq. ft. (600m2)



UPC: 609207104018


Motor:

 Lamb powered, 3-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity
Air Watts:  575 Air Watts of efficient cleaning power
Air Flow:  Air flow of 124.1 cubic feet per minute
Suction Power:  Excellent suction power of 141.8 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 15.7 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1855 watts of powerful performance making cleaning that much easier!

Image title

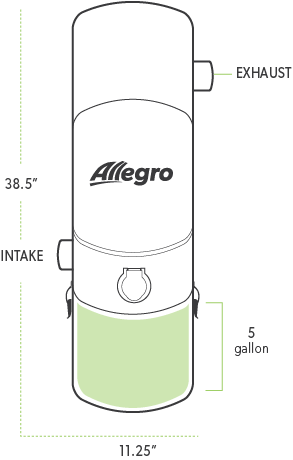

Construction: 11.25" width  x 38.5" height with a 5 gallon dirt pail. Made of all steel construction. 32 lbs.
Filtration:  Self cleaning, no maintenance, patented Fibro-Tex Filtration Systems. This permanent filtration system never needs to be replaced or washed.
Finish:  Primed with environmentally friendly electrostatic powder coat. Guaranteed for life against corrosion perferation.

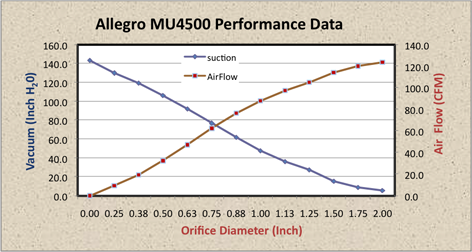

Allegro Central Vacuum MU4500 Performance Graph

Image title Image title Image title



Allegro Standard Central Vacuum Technical Bulletin



Allegro's Frequently Asked Questions



 Image title

Qty.:
375.00 USD
330.00 USD
Add to cart

Technical characteristics

Main parametersModel - MU4500
Cleaning Area6,000 sq. foot
Suction Power141.8 inch water lift
Air-Flow124.1 CFM
Air-Watts575
Motor2 Stage, 5.7", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Input Power1855 watt
Shipping Weightyes
Max. Amps15.7
Hertz60 Hz
Dust IntakeSingle
