DA VINCI
Our heavy duty powerful unit is ideal, primarily for industrial and commercial application, and homes up to 800 m2.
Allegro's
Eco-line™Green Powered models are designed for high efficiency
performance to save on electricity and are rated to have twice the life
of regular blower motors.
| Motor: | 2-Stage, 167.6 mm, Single Speed, All metal construction, Bypass Tangential Discharge, 10mm shaft with double ball bearings. |
| Air Watts: | 646 |
| Air Flow: | 65,5 l/sec (litres per second) |
| Suction Power: | 3.401 mm water lift (mm H20 ) |
| Max. Amps: | 7,4 |
| Volts: | 220-240v |
| Input Power: | 1.650 Watts |
Construction:
32 litre (8 US gal.) dirt pail - 14" dia. x 43 " height. All steel construction (40 lb).
Filtration:
Self-cleaning, no maintenance, patented Micro-Fibre Filtration Systems. This permanent filtration system never needs to be replaced, or washed, and there are no expensive filter replacement costs.
Finish:
Primer and Environmentally friendly Electrostatic Powder coat. Guaranteed for life against corrosion perforation.
Exhaust:
The unit is fully ventable to the outside.

![]()
Click here for Allegro Commercial Central Vacuum Technical Data / Bulletin
Visit our Central Vacuum Frequantly Asked Q & A.

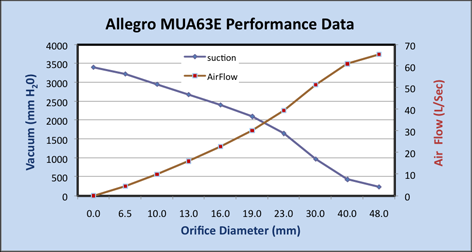

| Main parameters | Model - MUA63E |
|---|---|
| Suction Power | 3.401 mm water lift |
| Air-Flow | 65,5 l/sec |
| Air-Power | 646 |
| Motor | 2 Stage, 168 mm, Bypass, Tangential Discharge |
| Power Unit Voltage | ~ 220 - 240 v |
| Input Power | 1.650 watt |
| Shipping Weight | yes |
| Max. Amps | 7,4 |
| Hertz | 50 Hz |
| Dust Intake | Dual |
