PRODUCT / Central Vacuum Systems Installation Kits / Central Vacuum Electrified Inlet Kits / ZIK035-I

ZIK035-I

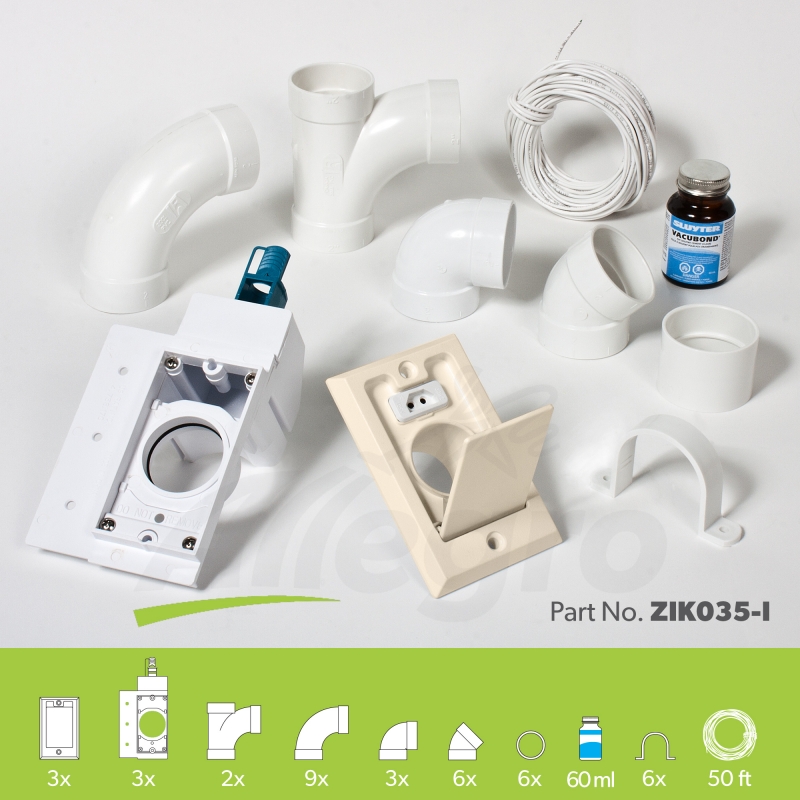

Central Vacuum Almond Electrified Valve 3-Inlet Installation Kit



















 3 x Inlet Valve - Almond

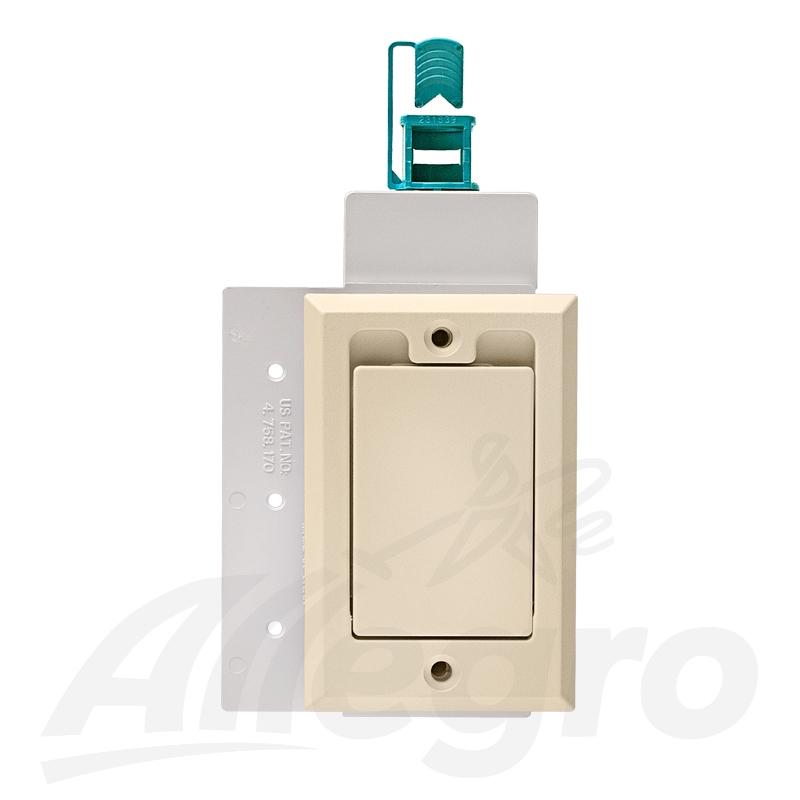

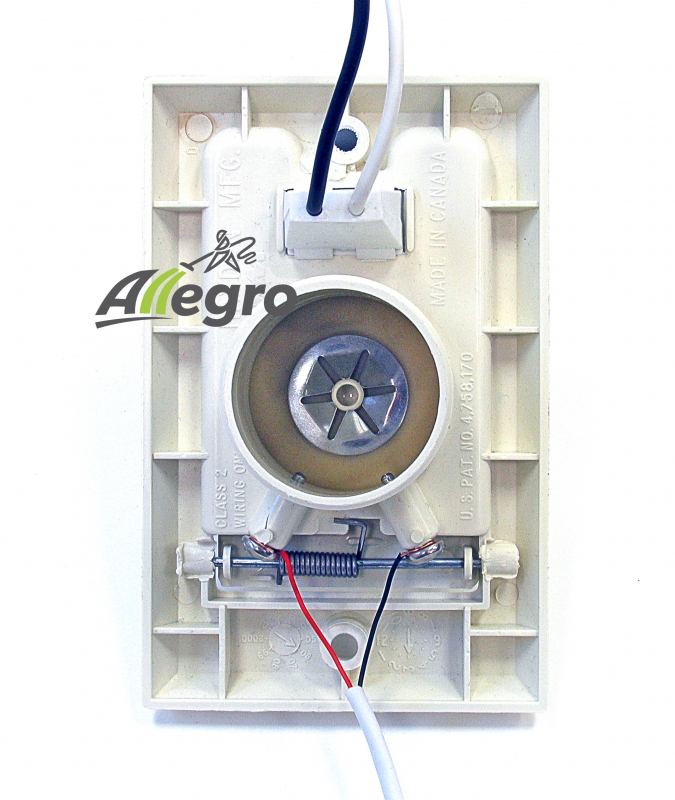

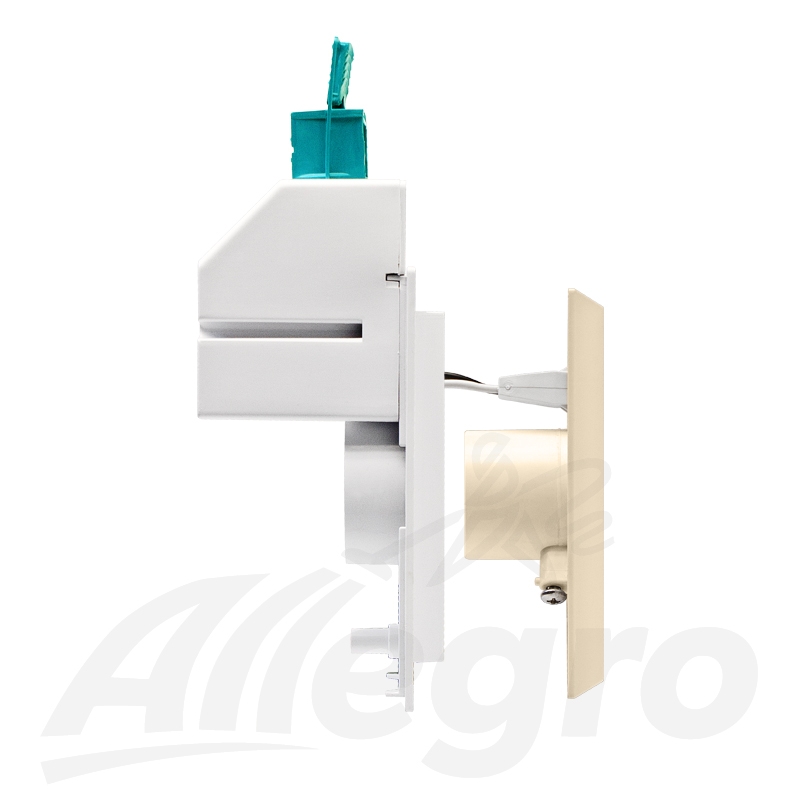

The Wall Inlet Valve is equipped with the low-voltage connections for remote turn  on/off as well as the electrical box for ~120v hook-up.

3 x Mounting Plate / Electrical box (for the valves)
2 x 90 degree "Tee" Elbow
9 x 90 degree Sweep Elbow
3 x 90 Sharp Elbow (you must use these at the back of each Inlet Valve)
6 x 45 degree Elbow
6 x Stop Coupling (to join the 2" pipe together)
60 ml Solvent Cement
2 x Pipe strap
50 foot Low-voltage wire







central vacuum electrified wall valve installation kit




Low Voltage wire Specifications:  Two conductor 22 gauge typical speaker wire
~120 v wire not supplied:  Consult your local building code for american wire gauge requirements
