User's Manuals / Central Vacuum Broadloom Carpet Electric Powerhead

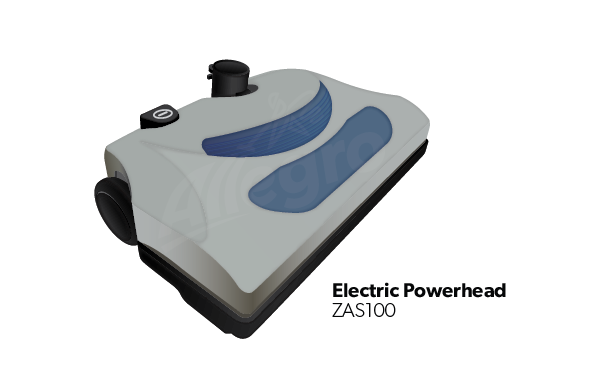

Allegro Electric Powerhead ZAS100

Instruction Manual

Image title

IMPORTANT SAFEGUARDS

Your Powerbrush combines power cleaning with ease of maintenance and represents the very best in design and manufacturing. However, with any powerful appliance, caution must be exercised while using this Powerbrush.  You will find safety precautions and maintenance instructions outlined in this manual useful.  When using an electrical appliance, the following basic precautions should always be followed: Read all instructions before using this powerhead, and be sure to save these instructions for future reference.

WARNING: To reduce the risk of fire, electric shock, possible personal injury, or damage to the product, the following precautions should be followed.

1. Keep loose clothing, hair, fingers and other parts of body away from openings and moving parts (brush roller) when the Powerhead is connected to an electrical outlet.

2. Turn off all controls before unplugging.

3. Disconnect the Powerhead from the electrical outlet prior to any servicing.

4. Do not handle the Powerhead, it's electrical cord, or plug with wet hands.

5. Do not use with damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to an authorized service center for service / repair.

6. Do not use the Powerhead in areas where flammable or combustible liquids, such as gasoline are present.

7. Do not allow to be used as a toy. Close attention is necessary when by or near children.

8. Electric shock could occur if the Powerhead is used outdoors or on wet surfaces.

9.  Always turn off the Powerhead before connecting and disconnecting the hose.



10.  If a current carrying hose is used in conjunction with the Powerhead, ensure the hose is not damaged, cut or punctured. Avoid picking up sharp objects.

11. Do not pull or carry by cord, use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces. Do not run the appliance over the cord.

12. Do not attempt to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes with the Powerhead.

13. Do not put any objects into openings. Do not use with any openings blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

14. Use extra care when cleaning on stairs.

15. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

16. Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use.

17. Use only as described in this Instruction Manual. Use only manufacturer's recommended attachments.



Use & Care of your Electric Powerhead

[A] Attaching the Electric Powerhead

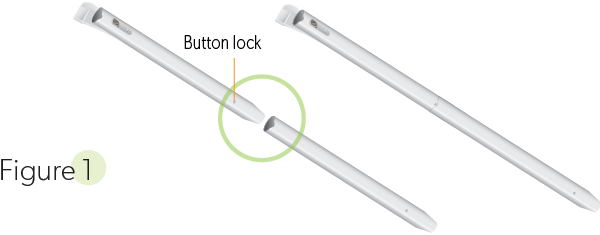

Assemble the wands, by inserting the upper wand into the lower wand (See Figure. 1) so that the button of one locks into the hole of the of the other.

Image title

 Push assembled wands into the Powerhead socket / neck until it locks in place. The wand socket is designed with a positive stop. Therefore, the wand will not jam in the wand socket.
Insert the electrical plug into the plug holder located on the back of the upper wand and snap into place.

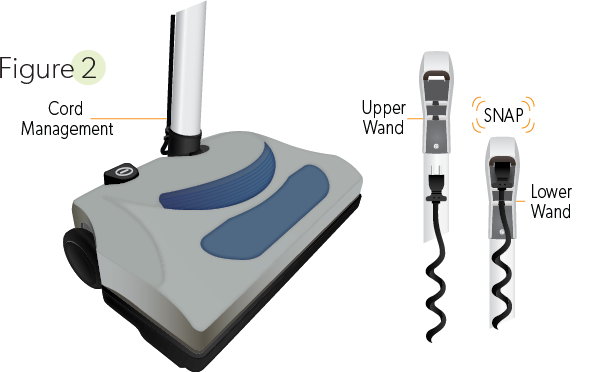

Push the electrical cord into the cord channels located on the back of the socket and the lower wand. (See Figure. 2
Image title

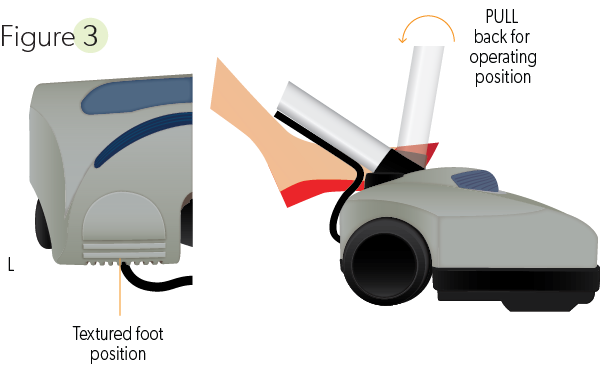

The wand can be locked in an upright position by pushing it forward until the lock is engaged. This locked position is convenient for storage and for lifting of the Powerhead. To release wand from the vertical locked position, gently place foot on Powerhead (See Figure. 3), grasp wand and pull back firmly. Now the nozzle is in operating position.
Image title

Operating Instructions

When using the Powerbrush, the basic precautions outlined under "IMPORTANT SAFETY INSTRUCTIONS" should always be followed.



1.   Make sure the hose handle switch is in the OFF position.

2.   Insert hose end into the Powerbrush wands on the assembled Powerbrush.  For proper connection, ensure the spring button lock pops out (Figure 2).

3.   Insert the hose into a wall vacuum valve (faceplate), and plug the cord into electrical outlet (as shown in Figure 3).

4.   You may secure the Powerbrush by depressing neck release pedal.  Lower the wands from the upright position.  Switch hose to the ON position.



Helpful Hint:  To prevent possible damage to the Powerbrush, do not pick up hard or sharp objects.
