PRODUCT / Allegro Central Vacuum Packages / PKA54002

PKA54002

Allegro Central Vacuum 8,000 sq.ft. Complete Electric Powerhead and Hose










Motor:

 Lamb powered, 3-Stage AMETEK® 5.7" single speed motor with tangential bypass and 10mm shaft and bearing system for extra structural rigidity
Air Watts:  650 Air Watts of efficient cleaning power
Air Flow:  Air flow of 108 cubic feet per minute (CFM)
Suction Power:  Excellent suction power of 162 inch H2O lift
Max Amps:  Save on energy costs with a maximum current of 16.5 Amps
Volts:  Compatible with standard ~110 - 120v service.
Input Power  1930 watts of powerful performance making cleaning that much easier!

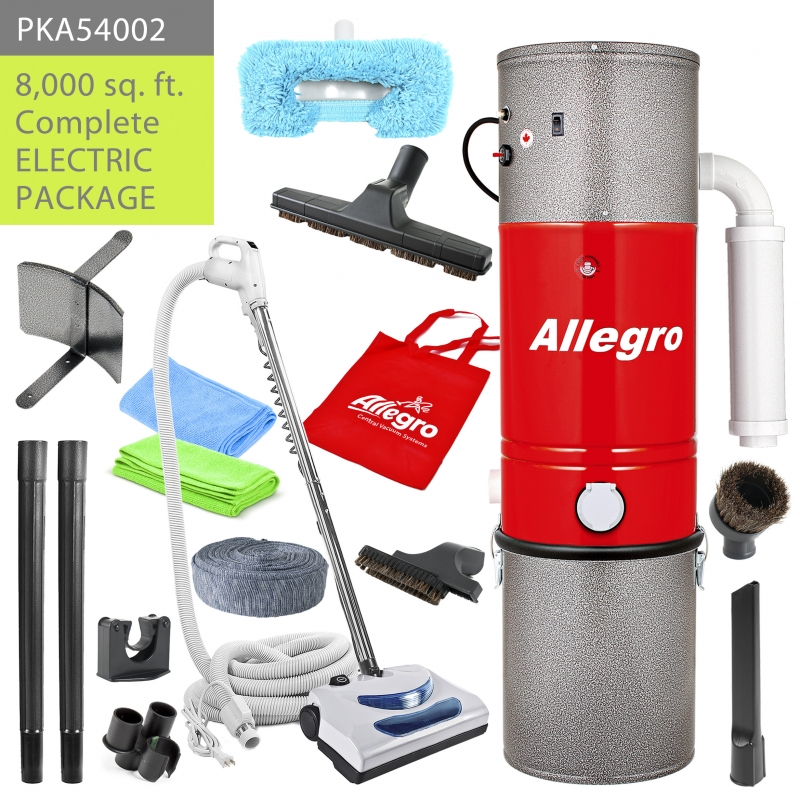

The Package Includes:

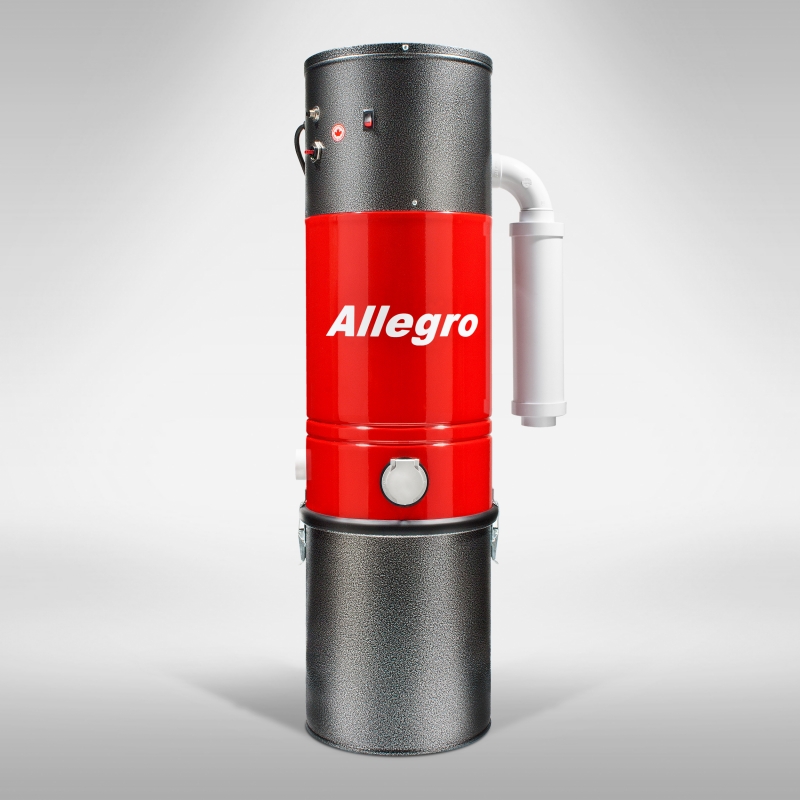

POWER UNIT MUA54

Acoustic Power Unit for homes up-to 8,000 sq. ft.

UPC Code:  609207104018

Motor:  3-Stage, 5.7" single speed all metal construction tangential bypass with double ball bearings, 10 mm shaft and bearing system for extra structural rigidity.



POWERHEAD:

At 5,500 r.p.m. the METAL beater bar provides optimal cleaning performance

Easy to reach under the beds, or furniture with a low profile and swivel neck configuration

It is an automatic height adjust with four soft wheels for exceptional maneuverability

Headlight systems

Compact, light-weight electric Power brush

Electronic overload sensor for automatic cut-out with rest button

Durable Cogged belt for positive drive

On/off foot pedal switch

Power cord that is 45 inches long with two pronged polarity plug

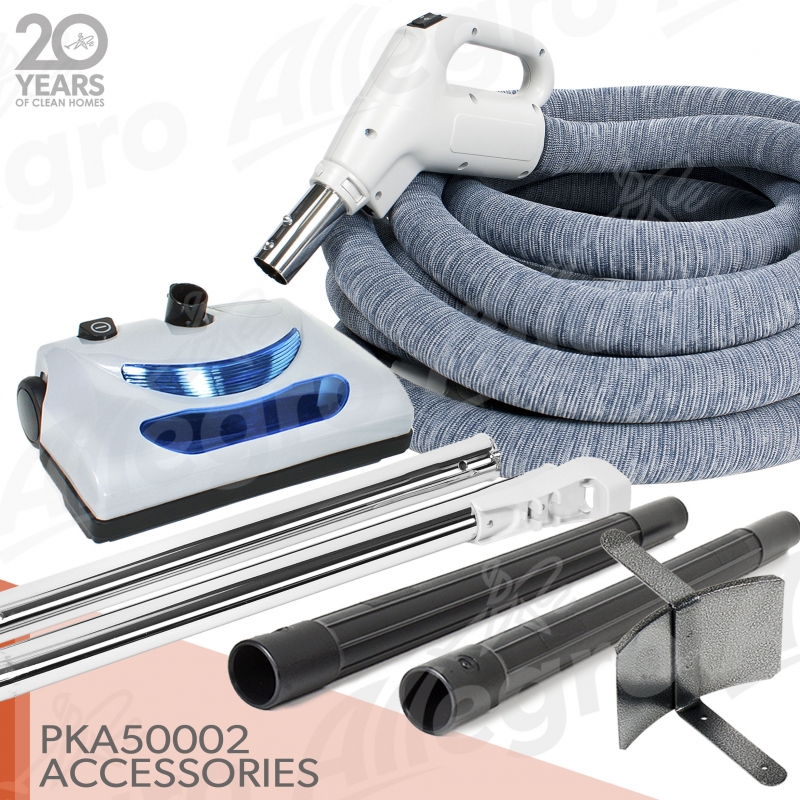

ELECTRIC HOSE:

Hose Length:  30 Foot (9 meter)

Hose Configuration: 8 Foot supply cord "Pigtail" with standard ~110 two-prong electrical plug

Dual voltage (~110v , 24 vdc) crush-proof, light-weight hose with ergonomic easy handle featuring 3-way control switch.

ON / OFF Controls for vacuum (suction) / Power nozzle (carpet sweeper)

360 degree full swivel handle for tangle-free operation



EXTENSION WANDS:

Set of 19 inch Chromed Steel Wands with Cord Management Cord Holder for integrated electrical connection and Button-Lock locking mechanism

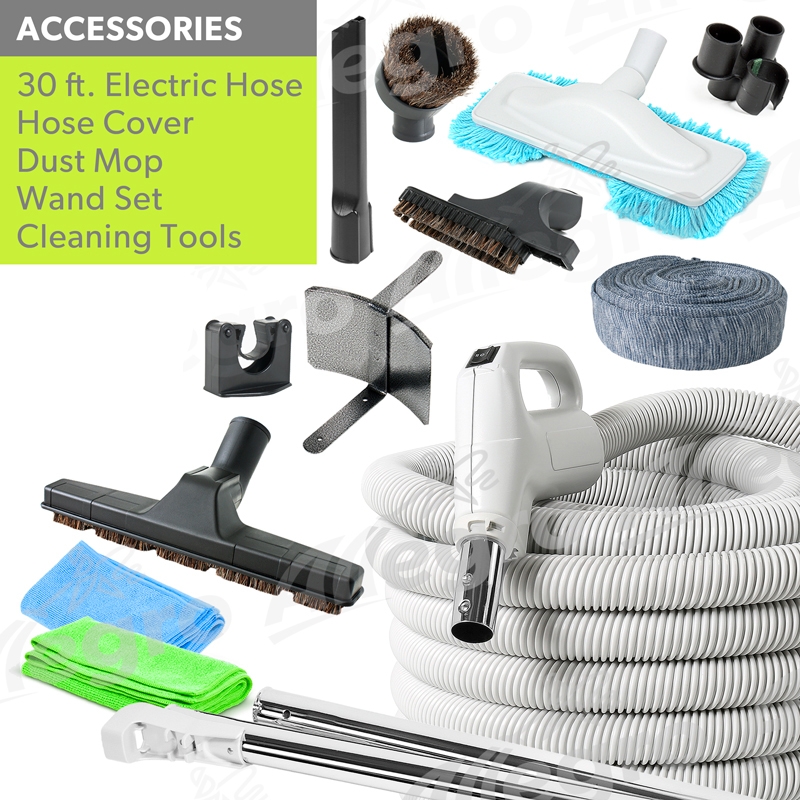

ACCESSORIES INCLUDED:

* 10 inch Floor Tool with non-scratch horsehair bristles

* Upholstery Nozzle with slide-on natural horsehair brush

* Dusting Brush with removable and washable non-scratch horsehair bristles

* 9 inch standard crevice tool

* Epoxy coated all metal sturdy Hose-rack

* Extra set of plastic wands for floor brush - the plastic wands are the best suitable ones for hardwood flooring. If dropped by accident, your flooring will not be damaged.

* 30 Foot Hose Cover / Sock

* Exhaust Muffler

* Tool Caddy

*
Wand Clamp

* Microfiber Dust Mop

* Two Microfiber Cleaning Cloth, very handy for a quick dusting





Allegro Central Vacuum Technical Review


Visit our Central Vacuum Frequently Asked Questions & Answer

Qty.:
1,164.99 USD
Add to cart

Technical characteristics

Main parametersModel - PKA54002
Cleaning Area8,000 sq. foot
Suction Power162 inch water lift
Air-Flow108 CFM
Air-Power650 Air Watts
Sound Level dB(a)64
Motor3 Stage, 5.7", Bypass, Tangential Discharge
Power Unit Voltage~ 110 - 120 v
Shipping Weightyes
Max. Amps15.7
Carpet Height AdjustFloating
Headlightyes
Overload ProtectorManual Reset
Hertz60 Hz
Hose Length30 Foot (9 m)
Hose Operating VoltageDual voltage ~ 120 v and 24 v dc
Suction Relief Valveyes
Wall End Cuff Size1.5 inch O.D.
Warranty10-Year
